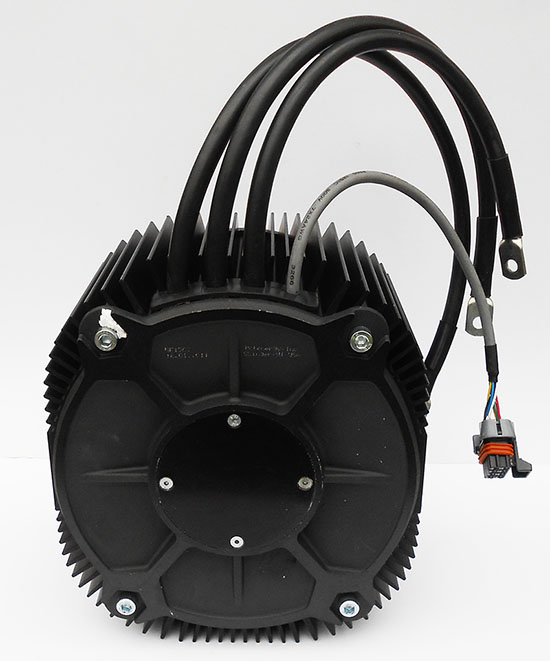

Here is the PMSM Motor ME1507 from Motenergy. The motor is totally enclosed and have air cooling feature.
See also :
- Motors from MOTENERGY
- Exemple de câblage du circuit électrique d'un kart
- Montage d'un Taper Lock sur un moteur ME1507
- ME1507 - A retrouver dans la boutique Kit Elec Shop.
The new PMSM Air Cool Motor ME1507 from Motenergy
The main characteristics of the PMSM ME1507 motor are :
- No brush maintenance.
- Continuous output Power of 13 kW.
- 3-phases, double stators, Y-connected Permanent Magnet Synchronus Motor with an axial air gap.
- The motor ME 1507 with controller are 90% efficient at 100 V DC.
- This is a 5 pairs pole motor (10 magnets).
- The maximum recommended rotor speed is 8000 RPM.
- Armature Inertia is 960 Kg Cm Squared.
- Continuous current of 157 Amps AC.
- Peak current of 600 Amps AC for 1 minute.
- Weight of 21.4 kg.
- Peak Stall Torque is 120 Nm.
- Temperature sensor KTY84-130.
- Encoder sin/cos.
- Motor drawing and dimensions are here.
- ME1507 motor data for Motenergy are here.
- Motor current, voltage, speed, power and effficency characteristics versus torque are here.
The new PMSM Air Cool Motor ME1507 from Motenergy
The new PMSM Air Cool Motor ME1507 from Motenergy
The new PMSM Air Cool Motor ME1507 from Motenergy
The new PMSM Air Cool Motor ME1507 from Motenergy
The new PMSM Air Cool Motor ME1507 from Motenergy
Câblage du connecteur du codeur sin/cos du ME1507 sens CCW
Câblage du connecteur du codeur sin/cos du ME1507 sens CW
