Here is the PMSM Motor ME1304 from Motenergy. The motor is totally enclosed and have water cooling feature.

See also :

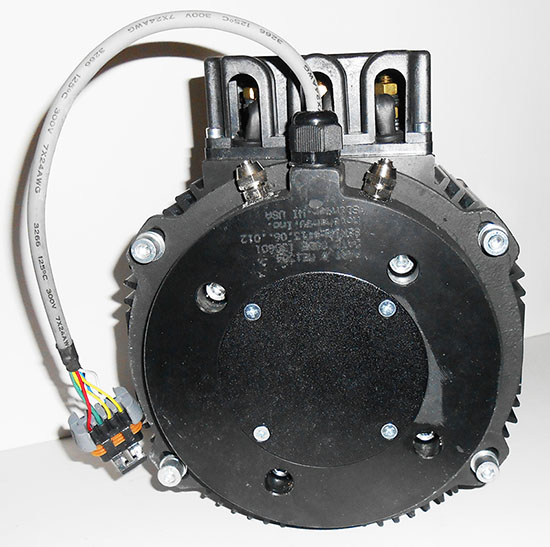

The new PMSM Watercool Motor ME1304 from Motenergy

The main characteristics of the PMSM ME1304 motor are :

  • No brush maintenance.
  • Output Power of 8.5 KW Continuous under 72VDC, xx KW Peak.
  • 3-phases, double stators, Y-connected Permanent Magnet Synchronus Motor with an axial air gap.
  • The motor with controller are 90% efficient at 72VDC.
  • This is a 4 pair poles motor (8 magnets).
  • The Phase to Phase winding resistance is 0.0063 Ohms.
  • The Phase to Phase winding inductor is 0.066 mH at 1kHz.
  • The maximum recommended rotor speed is xxxx RPM.
  • Torque constant of 0.14125 Nm per Amp DC.
  • Armature Inertia is xx Kg Cm Squared.
  • Continuous current of xxx Amps AC.
  • Peak current of xxx Amps AC for 1 minute.
  • Weight of 35 pounds (15,9 kg).
  • Peak Stall Torque is xx Nm.
  • Includes temperature sensor.
  • Motor drawing and dimensions are here.
  • Motor current, voltage, speed, power and effficency characteristics versus torque are here.
