Motors from MOTENERGY

Détails
Écrit par : John FIORENZA

Please note that Motenergy is the new name for Mars Electric LLC. After 13 years in business, we have changed the name to reflect our continued focus on providing low cost, energy efficient products.

www.motenergy.com

Voir aussi :

PMSM Motor ME1507 air cool

The new PMSM Air Cool Motor ME1507 from Motenergy

PMSM Motor ME1306

  • This motor is a drop-in replacement for the obsolete ME0913 motor.
  • The ME1306 has a larger bi-directional cooling fan and an aluminum fan cover as compared to the original ME0913 motor.
  • Output Power of 12 KW Continuous, 30 KW Peak.
  • 3-phase, Y-connected Permanent Magnet Synchronus Motor with an axial air gap.
  • The motor is 92% efficient at voltages between 24 to 96 VDC.
  • This is a 4 pole motor (8 magnets).
  • The Phase to Phase winding resistance is 0.013 Ohms.
  • The maximum recommended rotor speed is 5000 RPM.
  • Voltages from 24 to 100 VDC input to the control.
  • Torque constant of 0.15 Nm per Amp.
  • The Inductance Phase to Phase is 0.20 Milli-Henry.
  • Armature Inertia is 45 Kg Cm Squared.
  • Continuous current of 150 Amps AC (180 Amps DC into the motor control).
  • Peak current of 450 Amps AC for 1 minute (600 Amps DC into the motor control).
  • Weight of 36 pounds (16,3 kg).
  • Peak Stall Torque is 90 Nm.
  • This is an Open Frame, Fan Cooled motor.
  • Includes temperature sensor.
  • Motor drawing here.
  • Motor Plot here.
  • ME1306 - A retrouver dans la boutique Kit Elec Shop.
PMSM Motor ME1306

ME0909 Brush-Type motor

ME0909 Brush-Type motor

ME0708 Brush-Type motor

ME0708 Brush-Type motor
<

ME0709 Brush-Type motor

  • Permanent Magnet DC motor
  • Designed for 24-72 VDC battery operated equipment
  • 125 amps continuous (300 amps peak)
  • Totally open, fan cooled motor
  • Weight of 36 pounds (13,6 kg)
  • Similar in performance to the Perm-132 and the Lemco LEM-200 motors
  • ME0709 - A retrouver dans la boutique Kit Elec Shop.
ME0709 Brush-Type motor

PM generator ME1016

  • Permanent Magnet Generator for use in Hydro Electric Projects.
  • Comes with an aluminum Hub that fits the ME0903 Pelton Water Wheel.
  • The output is 1000 watts at 12 VAC at 1000 rpm, and up to 3000 watts at 36 VAC and 3000 rpm.
  • The generator is a 3-phase, Y-connected winding.
  • To convert to DC power, simply connect a 3-phase Full Wave Bridge Rectifier.
  • Weight : xx kg
  • ME1016 Generator Drawing (PDF, 1 page)
  • ME1016 - A retrouver dans la boutique Kit Elec Shop.
PM generator ME1016

PMSM Motor ME0907 (replace ME0201013001)

PMSM Motor ME0907

PMSM Motor ME0201013601

  • No brush maintenance
  • The motor is totally enclosed
  • 3-phase, Y-connected Permanent Magnet Synchronus Motor with an axial air gap
  • The motor is 90% efficient at voltages between 24 to 48 VDC
  • Continuous current of 50 amps at 48 VDC
  • 28 turns per phase Line to Line resistance of 0.025 ohms
  • Weight of 22 pounds (10 kg)
PMSM Motor ME0201013601

PMSM Motor ME0913

  • No brush maintenance.
  • Output Power of 12 KW Continuous, 30 KW Peak.
  • 3-phase, Y-connected Permanent Magnet Synchronus Motor with an axial air gap.
  • The motor is 92% efficient at voltages between 24 to 96 VDC.
  • This is a 4 pole motor (8 magnets).
  • The Phase to Phase winding resistance is 0.013 Ohms.
  • The maximum recommended rotor speed is 5000 RPM.
  • Voltages from 0 to 96 VDC input to the control.
  • Torque constant of 0.15 Nm per Amp.
  • The Inductance Phase to Phase is 0.20 Milli-Henry.
  • Armature Inertia is 45 Kg Cm Squared.
  • Continuous current of 125 Amps AC (180 Amps DC into the motor control).
  • Peak current of 420 Amps AC for 1 minute (600 Amps DC into the motor control).
  • Weight of 35 pounds (15,9 kg).
  • Peak Stall Torque is 90 Nm.
  • This is an Open Frame, Fan Cooled motor.
  • Includes temperature sensor.
  • Motor drawing here.
  • ME0913 - A retrouver dans la boutique Kit Elec Shop.
PMSM Motor ME0913

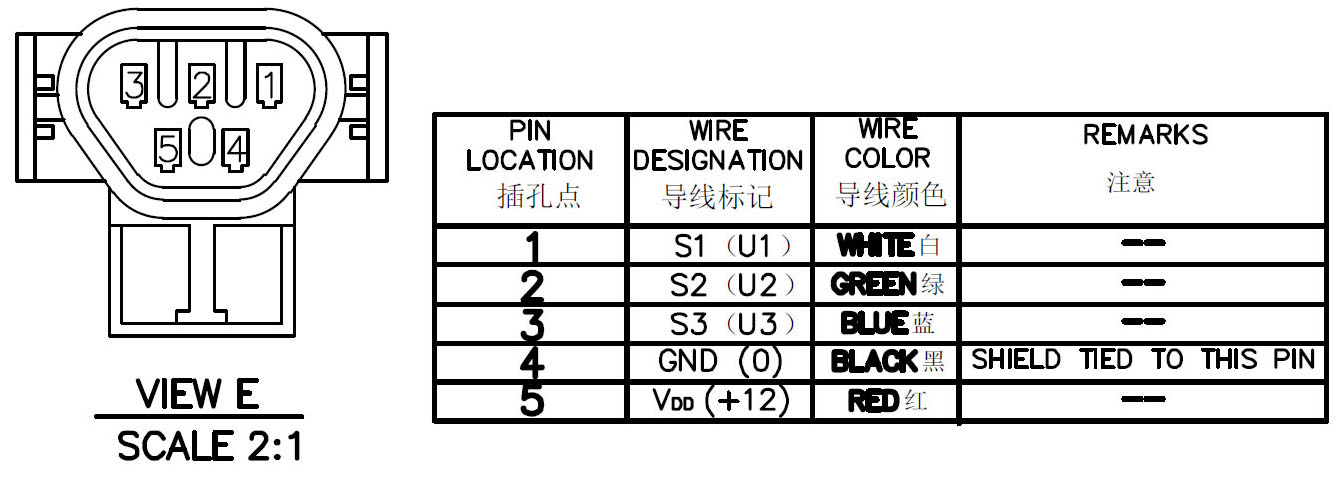

Câblage du connecteur du codeur U-V-W

Câblage du connecteur du codeur U-V-W

PMSM Motor ME1304

  • No brush maintenance.
  • Output Power of 8.5 KW Continuous under 72VDC, xx KW Peak.
  • 3-phases, double stators, Y-connected Permanent Magnet Synchronus Motor with an axial air gap.
  • The motor with controller are 90% efficient at 72VDC.
  • This is a 4 pole motor (8 magnets).
  • The Phase to Phase winding resistance is 0.0063 Ohms.
  • The Phase to Phase winding inductor is 0.066 mH at 1kHz.
  • The maximum recommended rotor speed is xxxx RPM.
  • Torque constant of 0.14125 Nm per Amp DC.
  • Armature Inertia is xx Kg Cm Squared.
  • Continuous current of xxx Amps AC.
  • Peak current of xxx Amps AC for 1 minute.
  • Weight of 35 pounds (15,9 kg).
  • Peak Stall Torque is xx Nm.
  • Includes temperature sensor.
  • Motor drawing here.
  • Motor current, voltage, speed, power and effficency characteristics versus torque are here.
  • ME1304 - A retrouver dans la boutique Kit Elec Shop.
The new PMSM Watercool Motor ME1304 from Motenergy

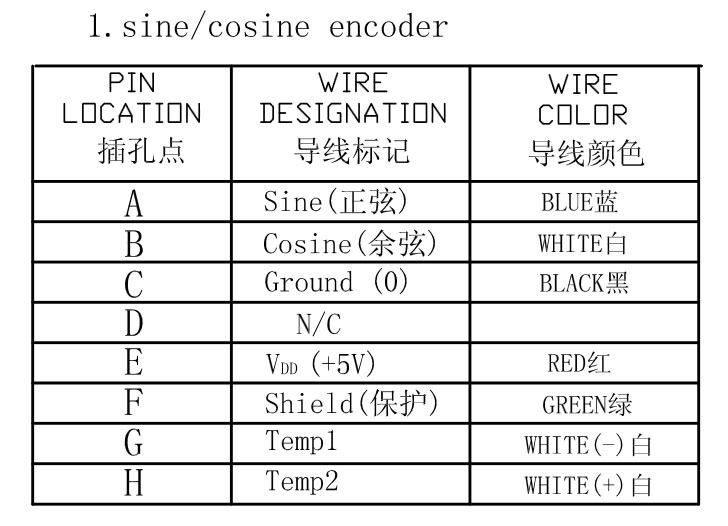

Câblage du connecteur du codeur sin/cos du ME1304

Câblage du connecteur du codeur sin/cos du ME1304
